Technical specifications

Hlavní stránka / Technical specifications

Business Name fusehead type selection fusehead resistance no-fire current during 5 min. firing current during 4 ms temperature range
EMP-U-EPX2-SO SO No. 2 0,48 Ω - 0,52 Ω
or
0,52 Ω - 0,56 Ω
0,45 A 2,12 A -20°C to +40°C
EMP-A-EPX2-NO NO No. 22 1,5 Ω - 1,7 Ω
  or
1,7Ω  - 1,9 Ω
0,18 A 1,0 A -20°C to +40°C

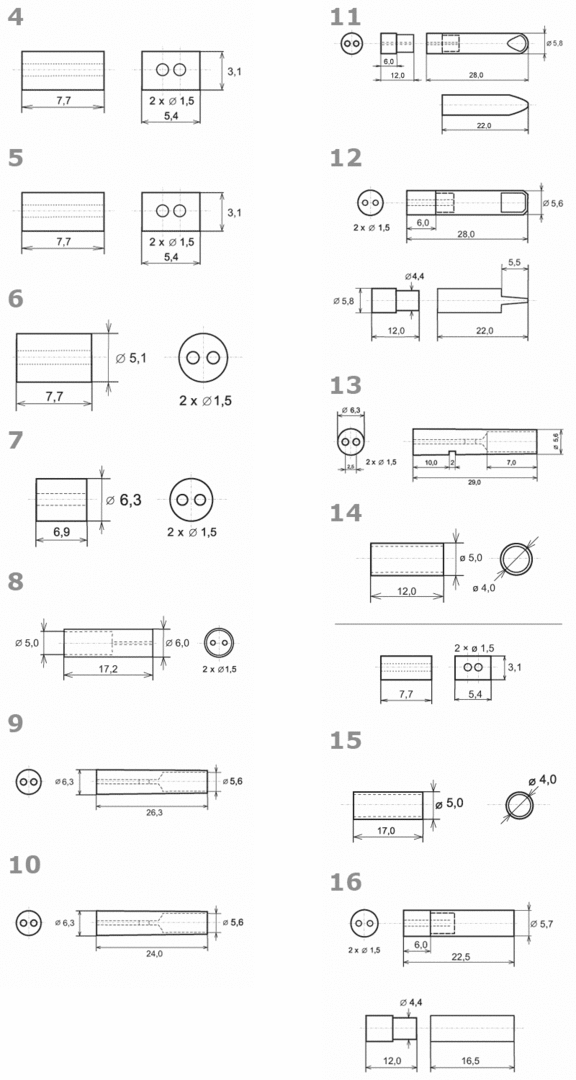

Click here for the dimensions of igniter caps.

wire type

wire material

core diameter

diameter including insulation

maximum resistance of 1 m wire

one solid wire

Cu

0,50 mm

1,3 mm

0,092 Ω

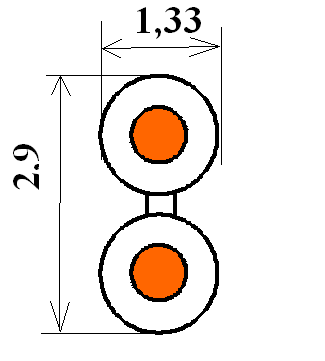

double core wire

Cu

0,50 mm

1,33 mm x 2,9 mm

0,092 Ω

If you need any other technical data, feel free to write us: meta-pyro@meta-pyro.cz.
